Aplomb Machines India Private Limited is a well-recognized name in the field of metal forming and precision machining equipment. When manufacturers look to achieve high accuracy, repeatability, and productivity in internal and external machining operations, broaching machines become a preferred choice. Aplomb Machines India Private Limited provide reliable guidance along with high-performance broaching solutions. Our design allows better support for lengthy broaches, reducing bending or deflection during cutting.
What Is a Horizontal Broaching Machine?
A horizontal broaching machine operates with the broach moving horizontally across the workpiece. In this setup, the workpiece is clamped securely, and the broach is either pushed or pulled through it in a horizontal direction. Horizontal machines are often preferred for long broach tools and heavy-duty applications. Broaching machines are widely used in automotive, aerospace, engineering, and manufacturing industries for producing keyways, splines, gears, and internal profiles.
Applications of Horizontal Broaching Machines
A horizontal broaching machine is commonly used in applications where long broaches or heavy cutting forces are required. Typical uses include:
- Internal keyways in large components
- Heavy automotive parts
- Industrial gears and splines
- High-strength metal components
Their robust construction makes them suitable for continuous and heavy-duty operations.
Also Read : What is an End Forming Machine and How Does It Benefit Your Production Process
What Is a Vertical Broaching Machine?
A vertical broaching machine, as the name suggests, operates with the broach moving vertically—either upward or downward. The workpiece is positioned below or above the broach, depending on the machine design. Vertical machines are popular due to their compact footprint and ease of operation. Gravity assists in chip removal, which improves surface finish and reduces tool wear.
Applications of Vertical Broaching Machines
A vertical broaching machine is widely used for precision components and medium to high-volume production. Common applications include:
- Automotive transmission parts
- Small to medium-sized keyways
- Precision internal profiles
- Mass production environments
Their compact design and efficient chip removal make them highly productive.

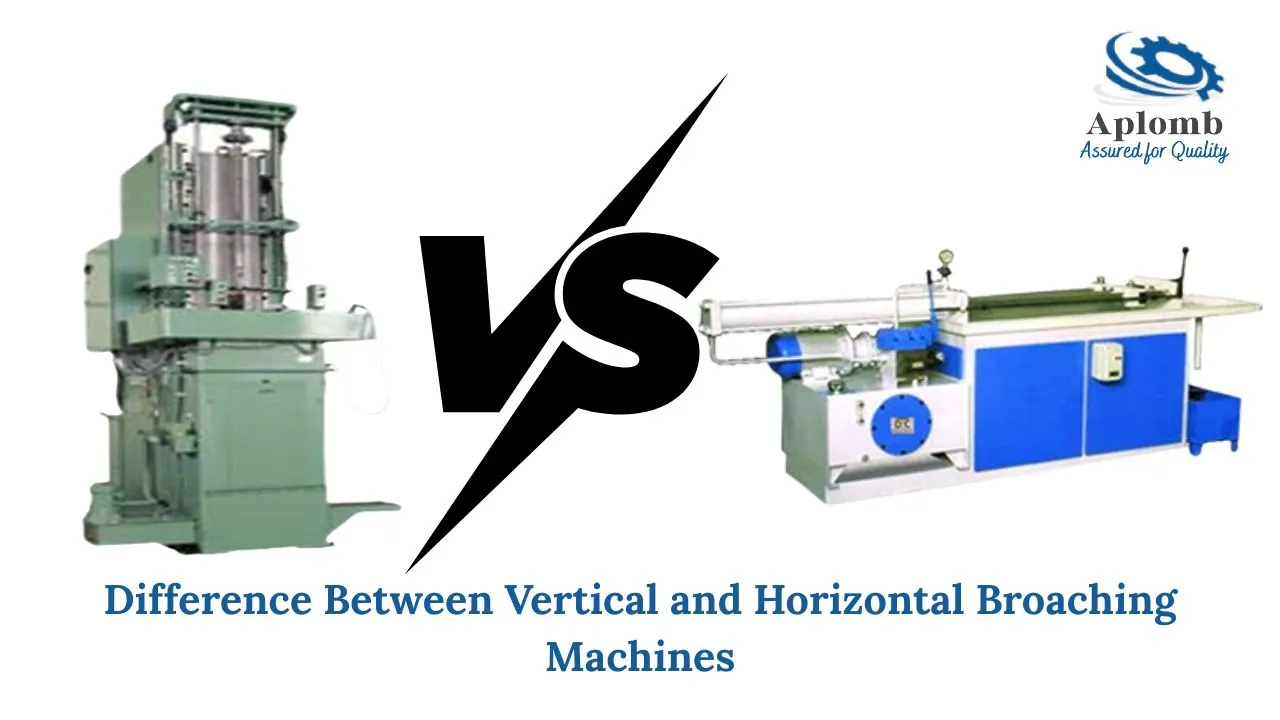

Horizontal and Vertical Broaching Machine: Key Differences
Understanding horizontal and vertical broaching machine differences is essential for making the right investment decision. Below are the main points of comparison:
- Machine Orientation & Space Requirement: A horizontal broaching machine generally requires more floor space because of its extended bed length. In contrast, a vertical broaching machine is more compact and suitable for facilities with limited space.
- Tool Length Handling: Horizontal machines are better suited for longer broach tools, as the horizontal layout offers improved support. Vertical machines are typically used with shorter broaches, making them ideal for compact operations.
- Ease of Operation: Vertical machines are often easier to load and unload, especially for smaller components. Horizontal machines may require more handling effort, particularly for heavy or bulky workpieces.
- Chip Removal Efficiency: In a vertical broaching machine, gravity helps chips fall away naturally, improving cleanliness and reducing chances of tool damage. Horizontal machines rely more on external chip removal systems.
- Production Speed & Automation: Both types can be automated, but vertical machines are often preferred in high-volume production lines due to easier integration with robotic loading systems.
Horizontal vs Vertical Broaching Machine
| Comparison Parameter | Horizontal Broaching Machine | Vertical Broaching Machine |
|---|---|---|
| Machine Orientation | Broach moves in a horizontal direction across the workpiece | Broach moves vertically, either upward or downward |
| Floor Space Required | Requires more floor space due to long bed design | Compact design, occupies less floor space |
| Tool Length Handling | Suitable for long and heavy broach tools | Best suited for short to medium-length broaches |
| Chip Removal | Needs external chip removal systems | Gravity helps in natural and efficient chip removal |
| Application Type | Ideal for heavy-duty and large components | Suitable for precision work and high-volume production |
Why Choose Aplomb Machines India Private Limited
Aplomb Machines India Private Limited brings together engineering excellence, industry experience, and customer-focused service. Our broaching machines are known for durability, precision, and long service life. From consultation and machine selection to installation and after-sales support, we offer complete solutions that help manufacturers improve productivity and machining accuracy.
Understanding the difference between vertical and horizontal broaching machines is essential for selecting the right equipment. The comparison of horizontal vs vertical broaching machines highlights how orientation, space, tooling, and application requirements influence performance. Whether it is a robust horizontal broaching machine for heavy-duty tasks or a compact vertical broaching machine for precision work, choosing the right partner matters. Aplomb Machines India Private Limited consistently provides reliable, high-quality broaching machines that support efficient, accurate, and future-ready manufacturing operations.
